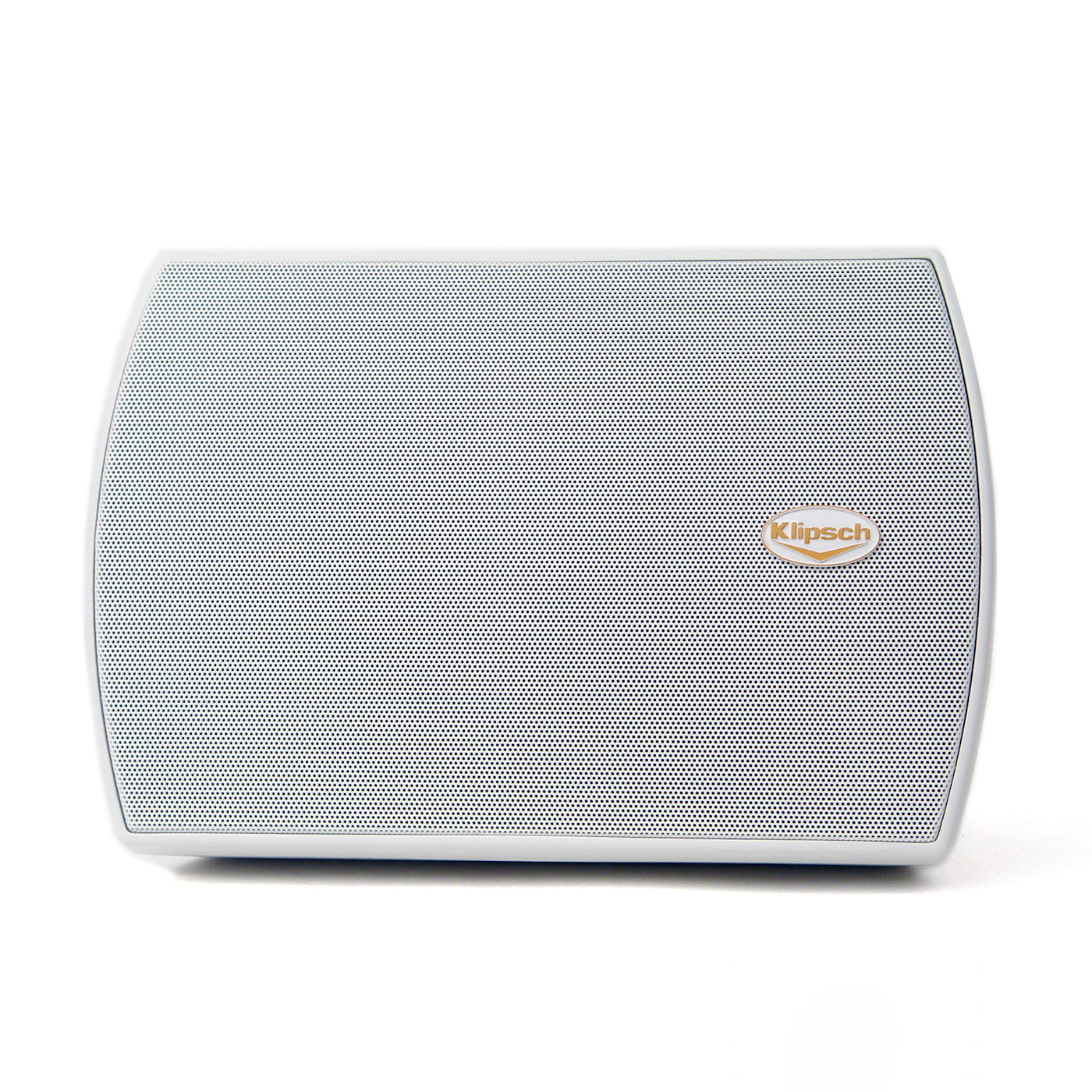

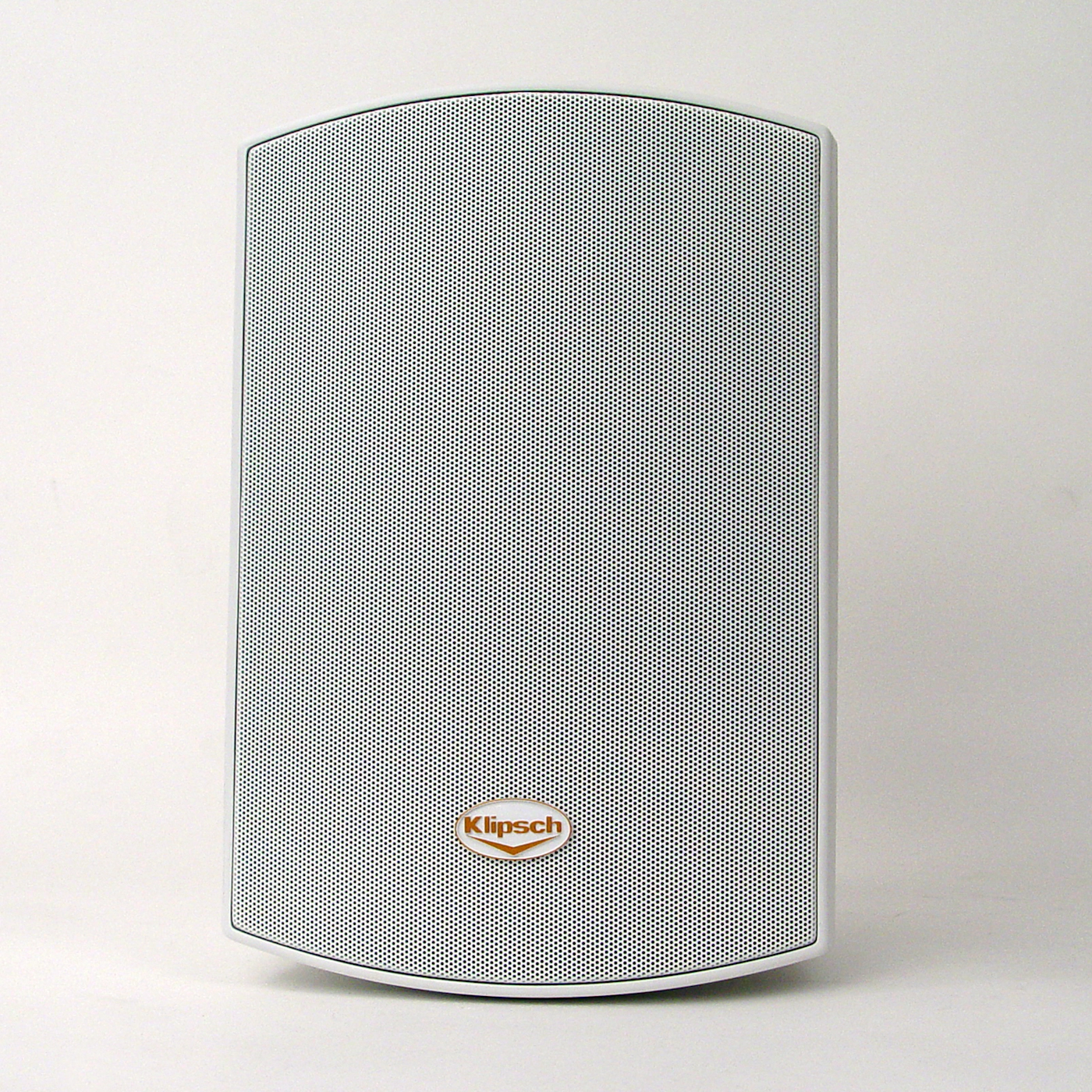

AW-525
Outdoor Speaker - Custom
The AW-525 all-weather loudspeaker brings clean clear dynamic Klipsch quality performances to patios, terraces, balconies, gardens, or poolside. And because it's so efficient you get much more sound per watt enabling this full-range model to work well in wide-open spaces.
Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.
Features
Key Product Features
| Paintable UV-resistant ABS enclosure with rustproof aluminum grille</li><li>High sensitivity and power handling |
| 90º x 90º Tractrix® Horn tweeter for clean clear highs |
| Supplied with C-style mounting bracket and stainless steel hardware |
| 3/8"-16 threaded insert for optional mounts |
Specifications
Key Product Specifications
| Frequency Response | 80Hz-20kHz ± 3dB |
| Sensitivity | 94dB @ 1 watt/1 meter |
| Nominal Impedance | 8 ohms |
| Crossover Frequency | 2450Hz |
| Power Handling | 75 watts (300 watts peak) |
| Enclosure Type | Bass-reflex via dual front-firing ports/ABS |
| Drive Components | Two-way system using one 1" (2.5cm) titanium dome tweeter with a 90˚x 90˚ Tractrix Horn and one 5.25" (13.3cm) IMG woofer |
| Wire Gauge Accommodated | 12 |
| Weight | 6.5 lbs. (3kg) |
| Height | 11.8" (29.8cm) |
| Width | 8" (20.3cm) |
| Depth | 9" (22.9cm) |
| Finish | White or Black enclosure and grille |
