PRO-18RW

$579.99

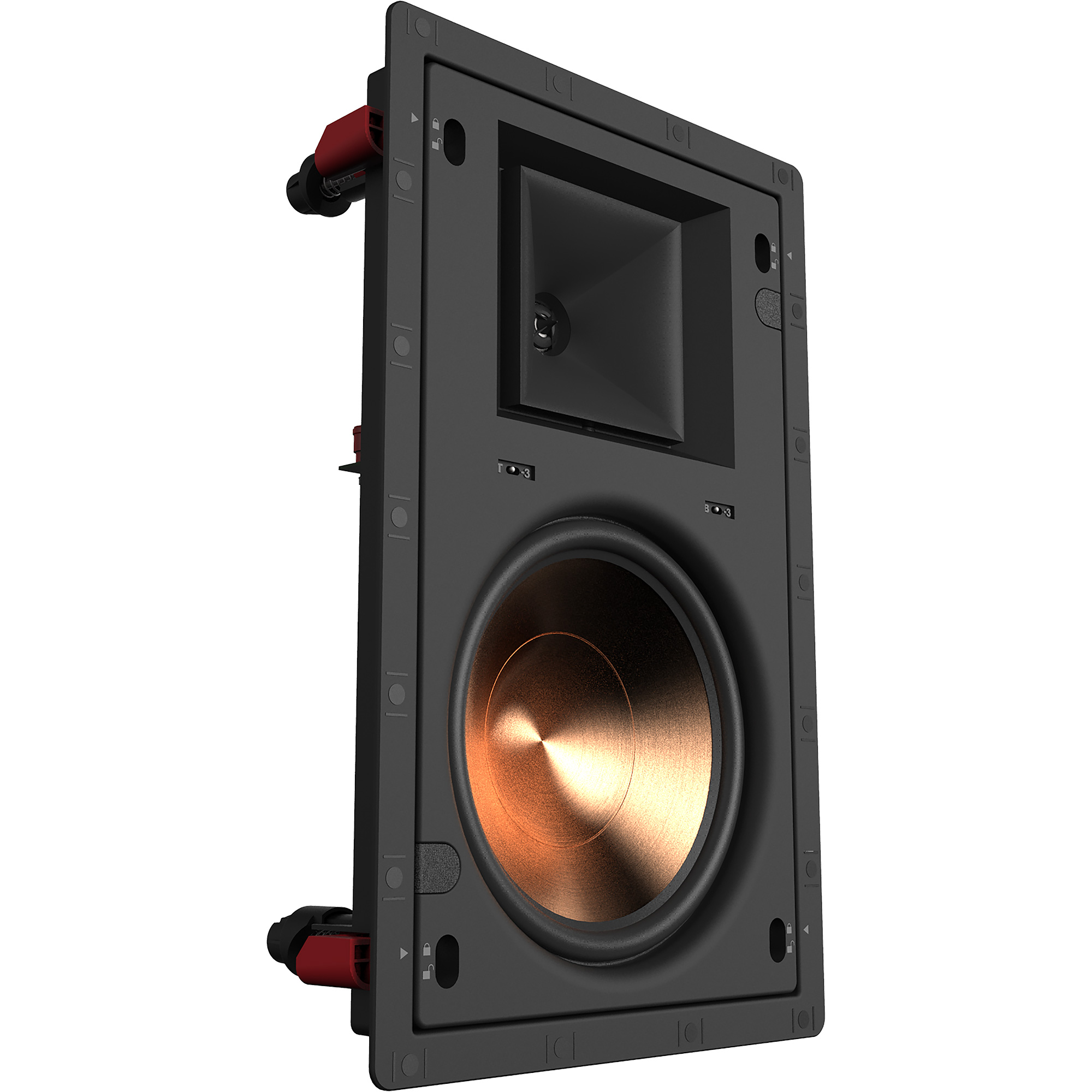

Featuring a 8” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-18RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

SECUREFIT™ INSTALLATION SYSTEM

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

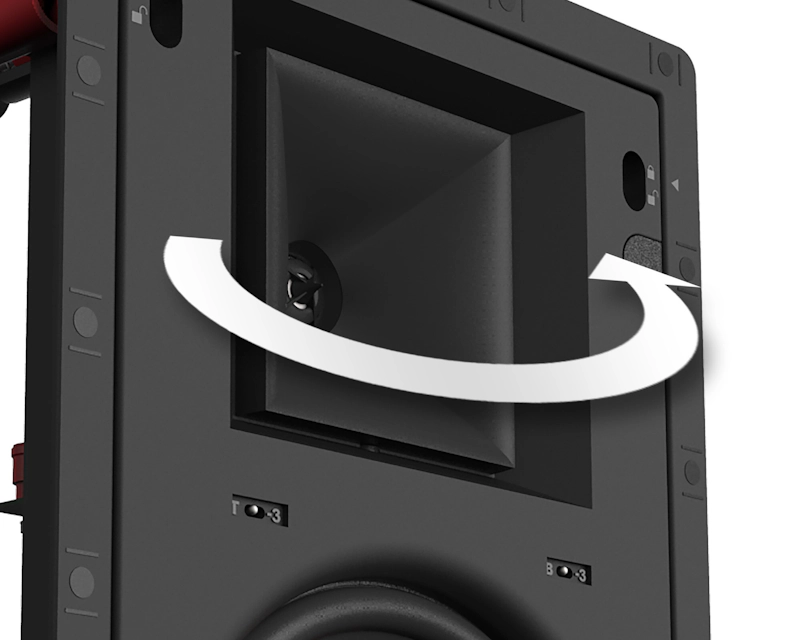

CONTROLLED DISPERSION™ TECHNOLOGY

Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

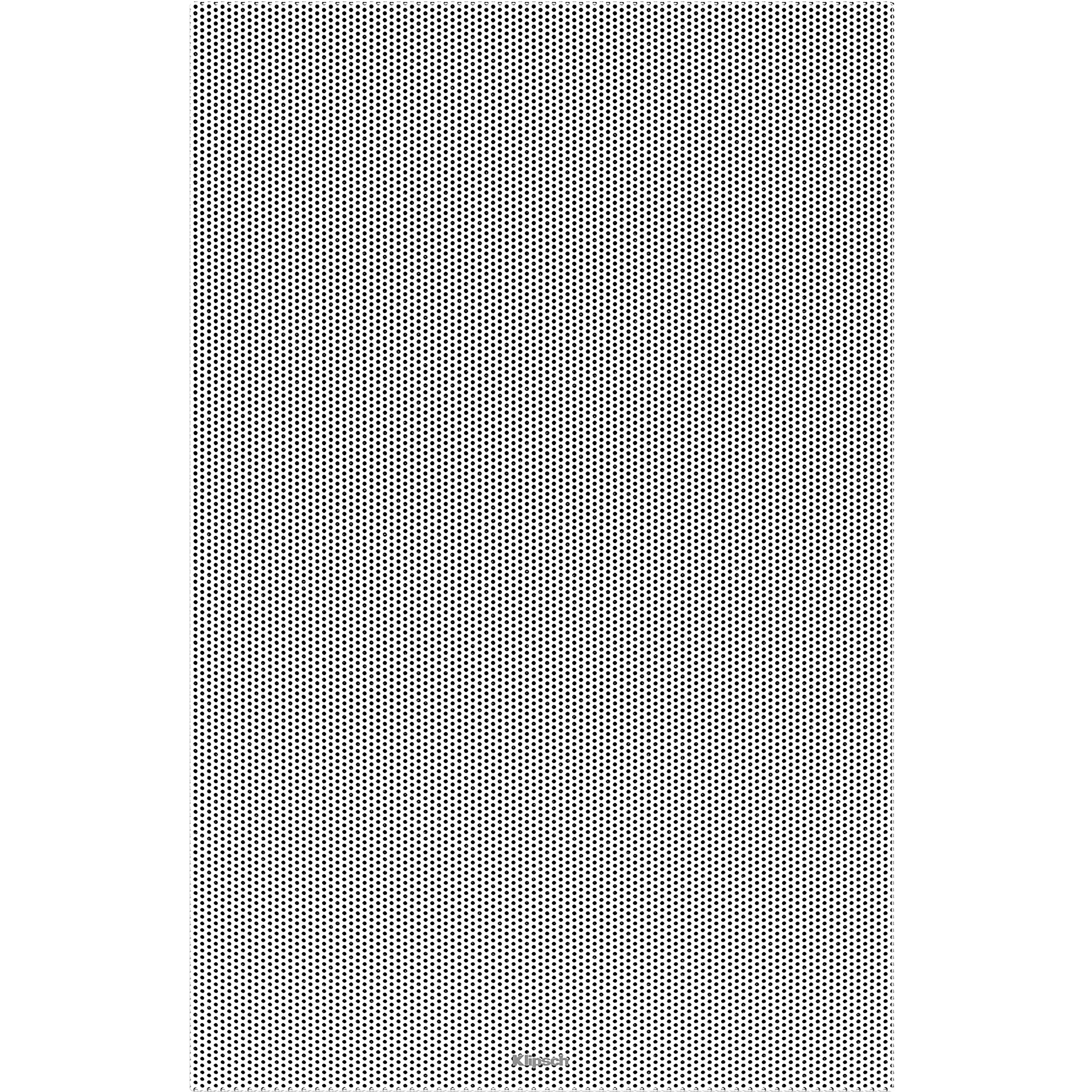

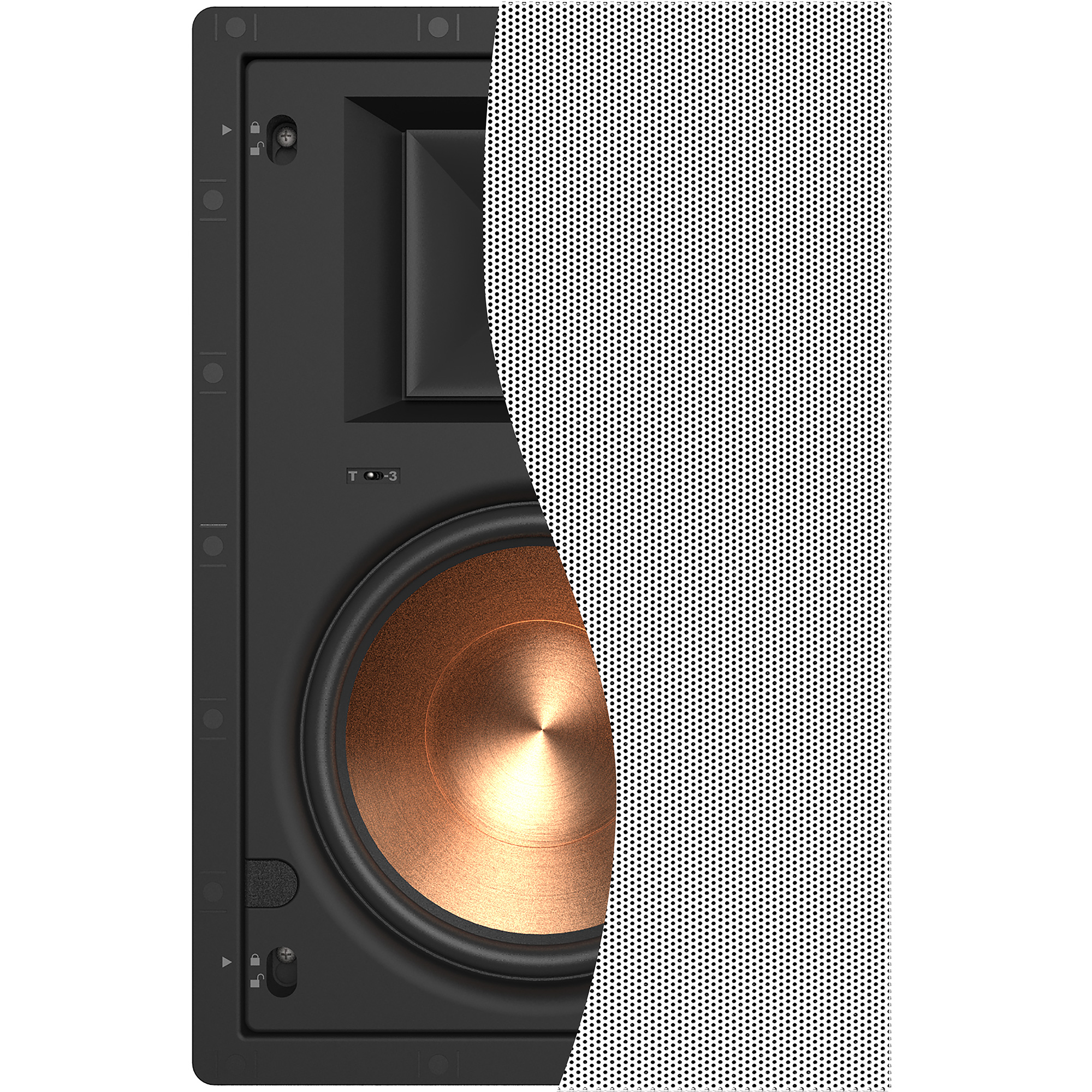

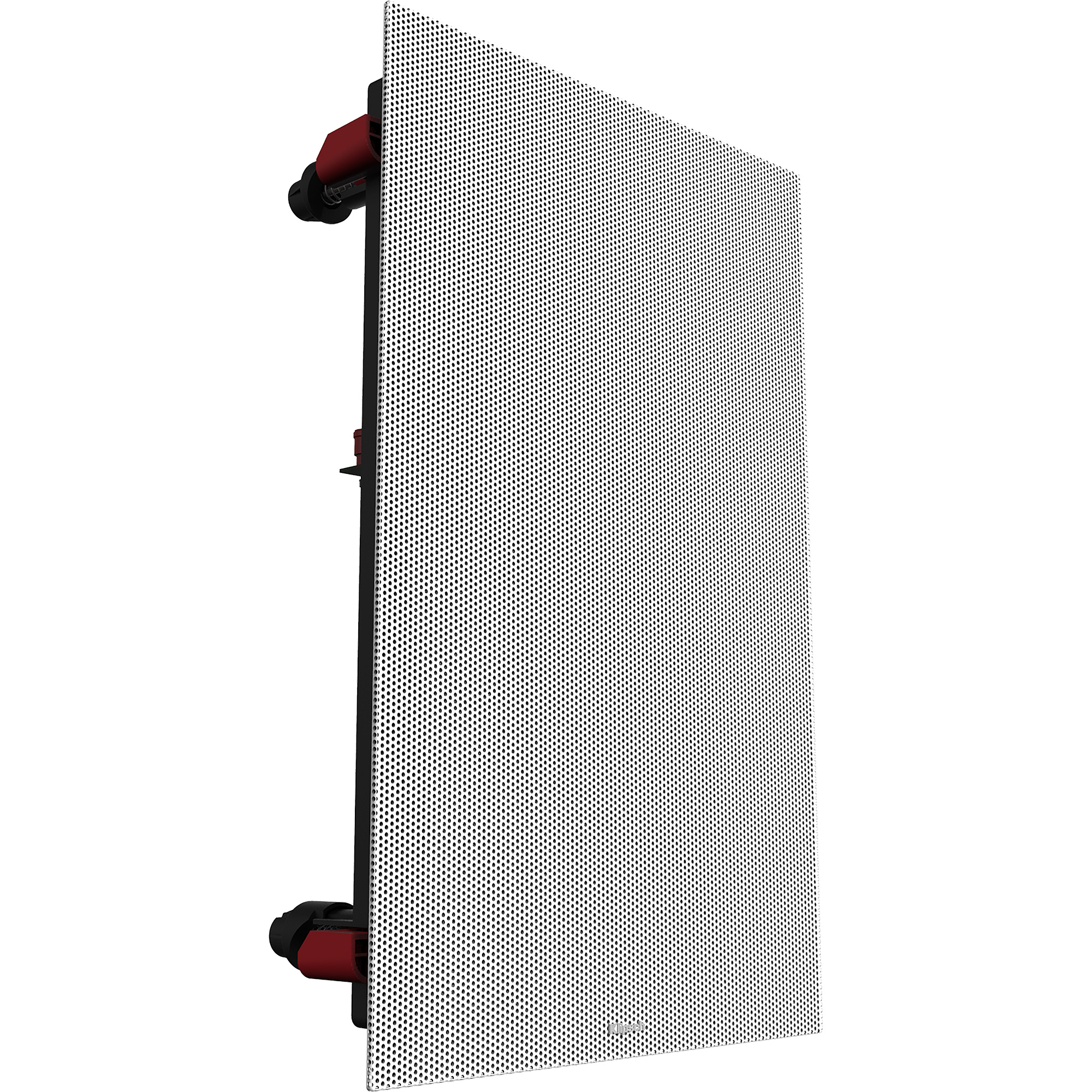

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Features

Key Product Features

8” Injection Molded Graphite (IMG) Woofer

1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter

Exclusive, modular SecureFit™ Installation System

Bezel-Free square and round paintable magnetic grilles

Controlled Dispersion™ Technology

Magnetic paint shield

Specifications

Key Product Specifications

Frequency Range

56Hz - 23kHz +/- 3dB

High Frequency Driver

1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn

Low Frequency Driver

8" (20.32cm) IMG Woofer

Sensitivity

95 dB @ 2.83V / 1m

Coverage Angle

90° x 90°

Power Handling

50W RMS / 200W Peak

Impedance

8 Ohm Compatible

Enclosure Type

ABS/Infinite Baffle

Finish

Black Baffle/Frame, White Paintable Grille

Product Dimensions

10.16” W x 15.75” H x 4.0” D (25.8cm H x 40.0cm W x 10.1cm D)

Mounting Depth

3.9” (9.9cm)

Cutout Diameter

14.8” H X 9.25” W (37.5cm H X 23.5cm W)

Product Weight

7.9lbs (3.6kg)

Included

Grille, Paint Shield

Installation Kit

IK-800-W II or IK-800-W (Sold Separately)

Built From

2017
