RP-140D

On-Wall Speaker

The Reference Premiere Designer On-Wall RP-140D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. Featuring a 3.5” Cerametallic™ woofer and 1” Titanium Dome Linear Travel Suspension (LTS) tweeter, this on-wall speakers offers flexible placement for front LCR, or side/rear surrounds.

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

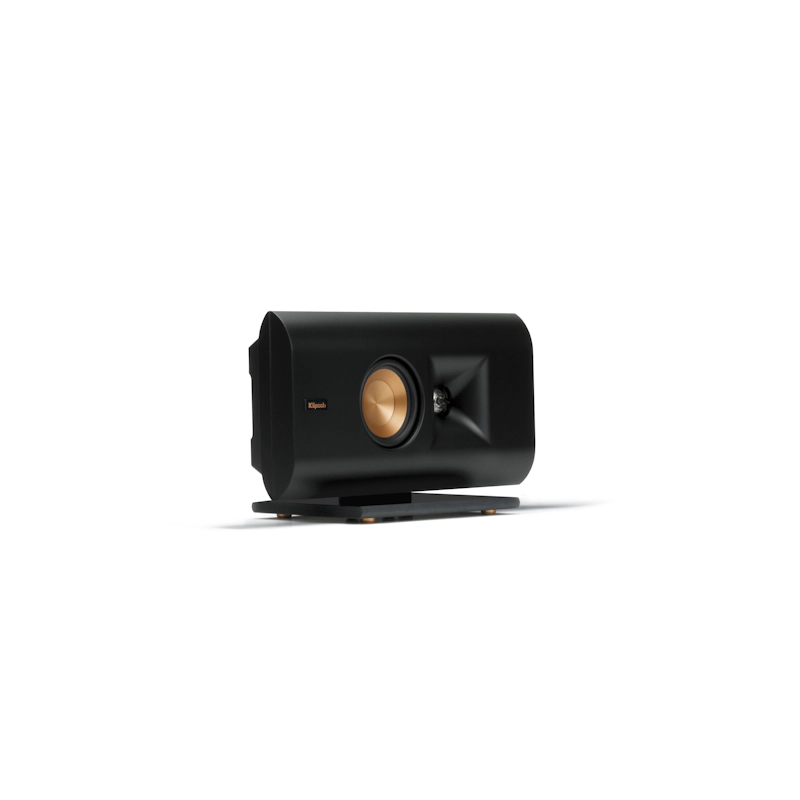

90x90 TRACTRIX HORN

The Tractrix^®horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER

The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

SPUN COPPER CERAMETALLIC WOOFERS

Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

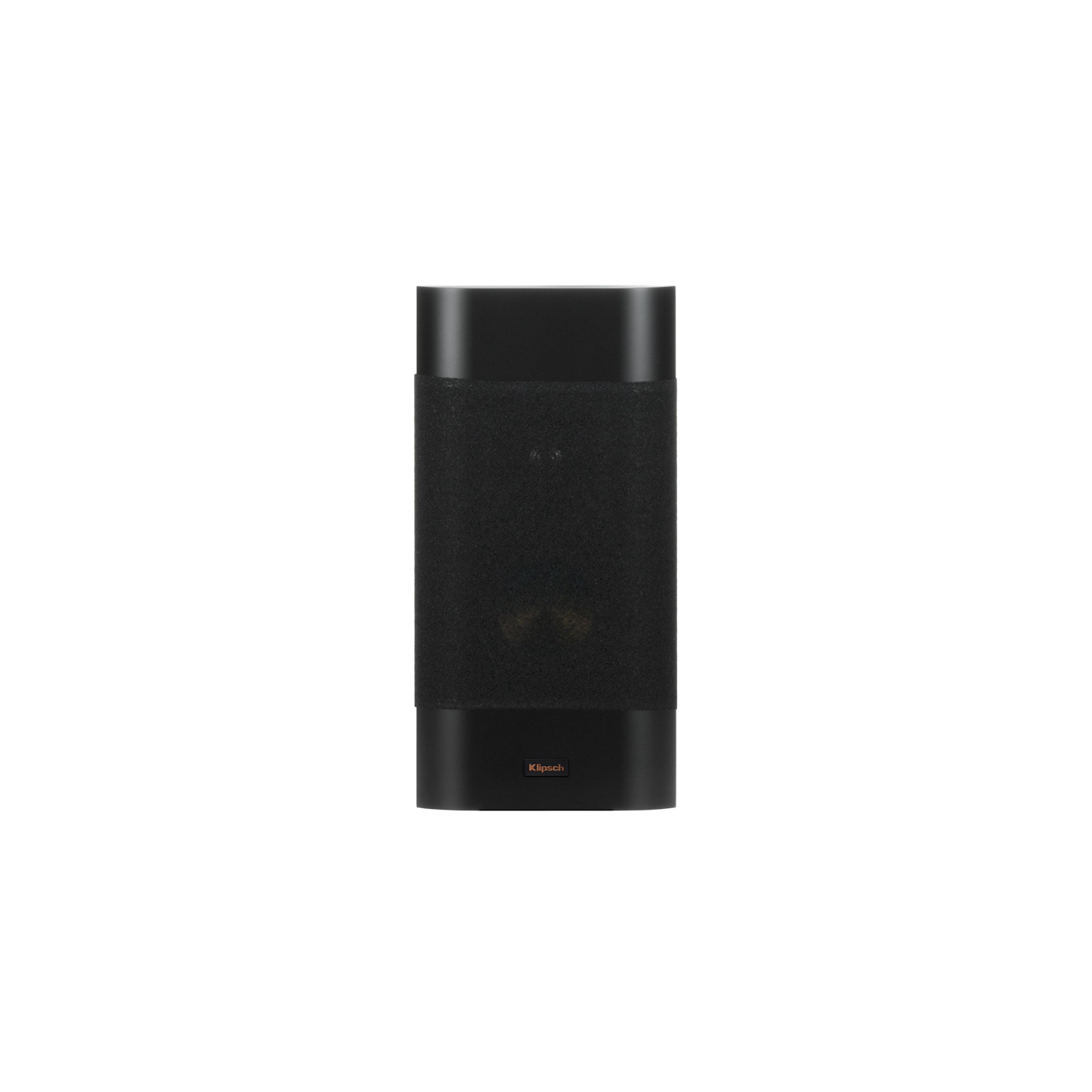

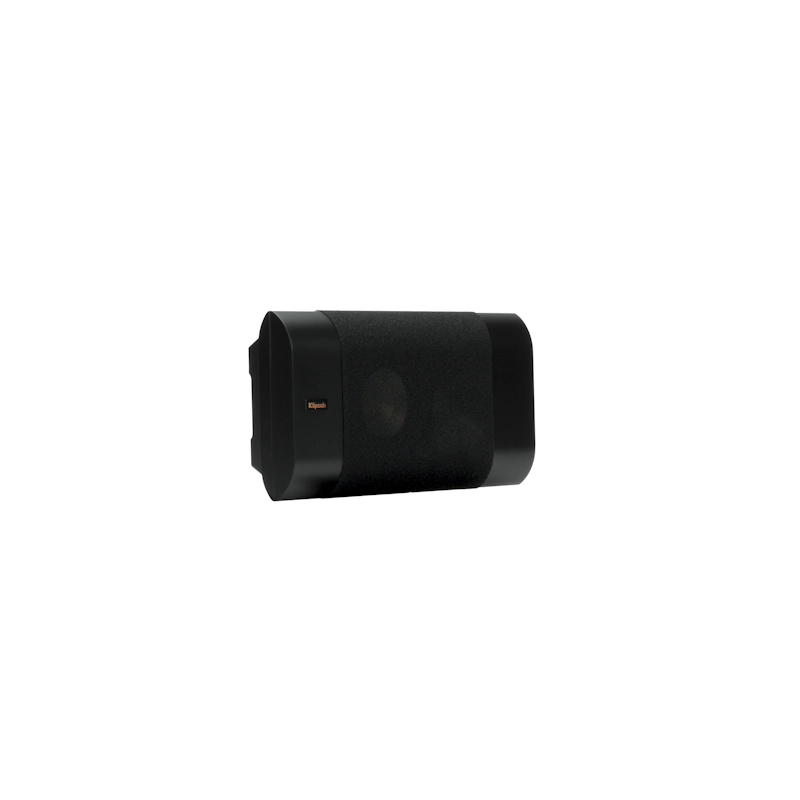

WRAP-AROUND MAGNETIC GRILLE

Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

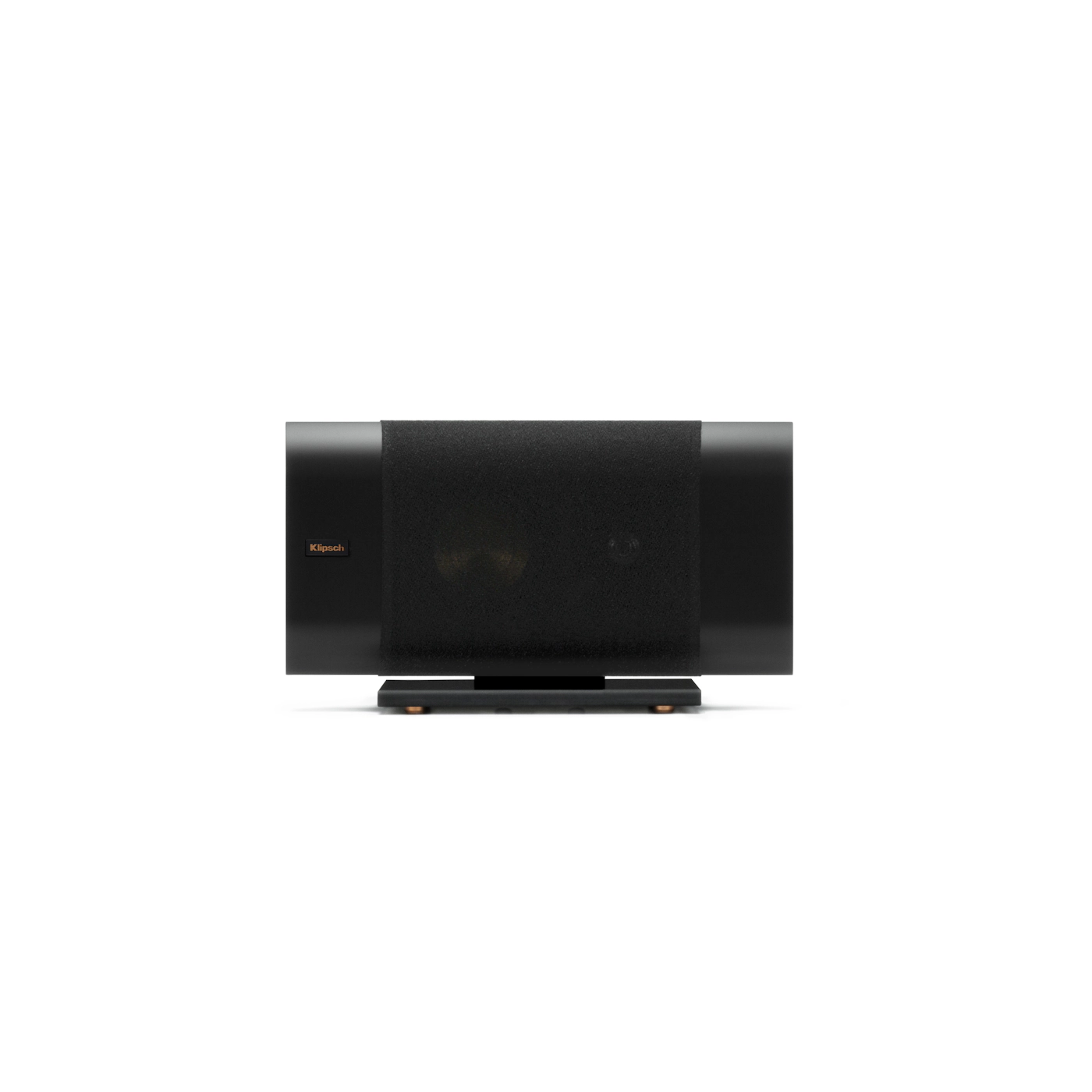

TABLE MOUNT INCLUDED

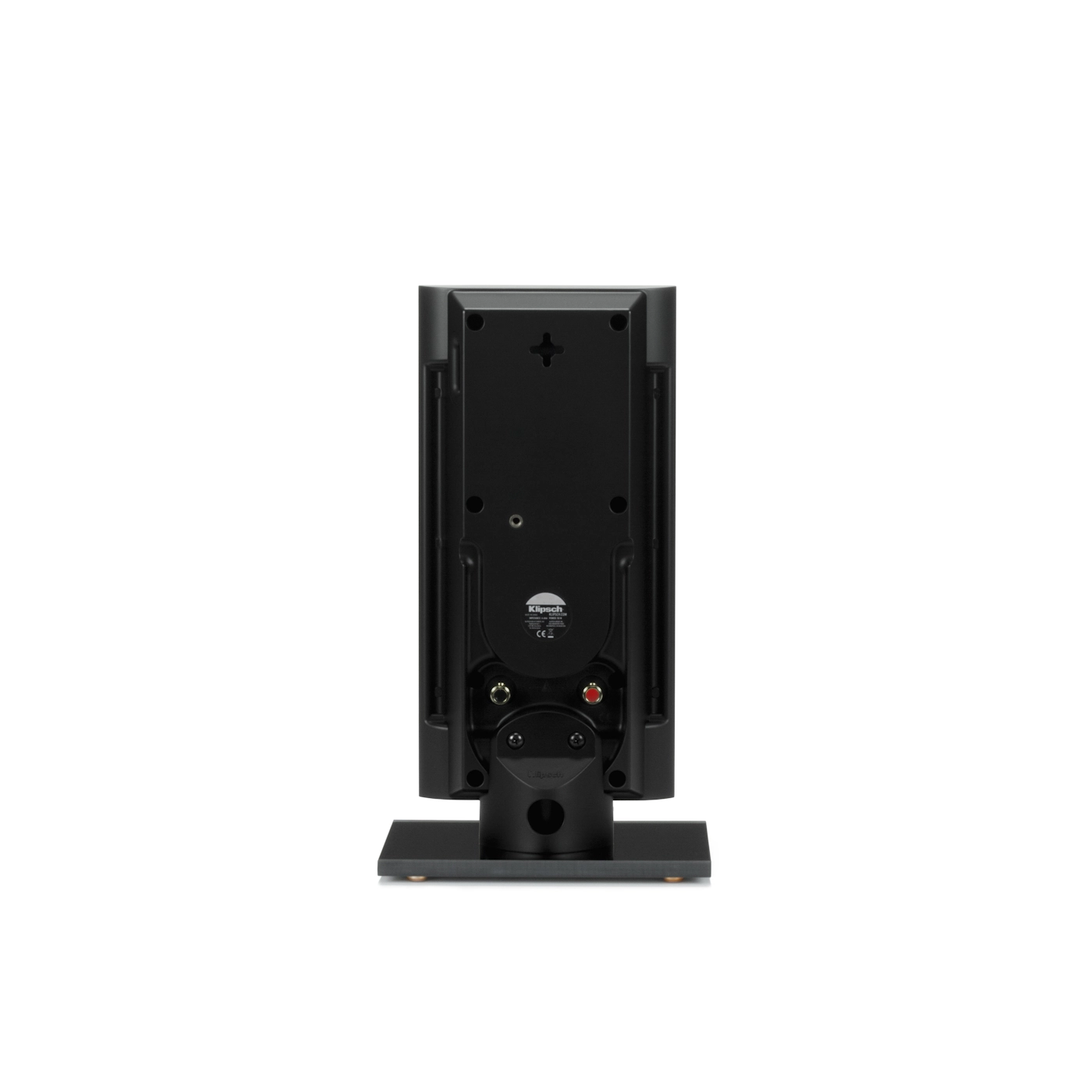

Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.

Features

Key Product Features

Slim On-Wall Solution Matches Today's Ultra-Flat TV's

Reference Premiere Horn Loaded Acoustic Technology

Horizontal and Vertical Mounting Options

Single 1” Titanium Dome Linear Travel Suspension (LTS) tweeter

Single 3.5" Cerametallic™ Woofer

Dual 4-Way Keyholes for secure on-wall mounting

Magnetic Wrap-Around Grille

Included glass base for table-top mounting

Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors

Specifications

Key Product Specifications

Frequency Response

69Hz-25kHz +/- 3dB

Sensitivity

91dB @ 2.83V / 1m

Power Handling

50W / 200W

Nominal Impedance

8 Ohms Compatible

Crossover Frequency

2200Hz

High Frequency Driver

1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn

Low Frequency Driver

3.5” (8.89 cm) Cerametallic Cone Woofers

Enclosure Material

ABS

Enclosure Type

Bass Reflex

Inputs

Single Binding Posts

Height

12" (30.48 cm)

Width

6" (15.24 cm)

Depth

2.4" (6.10 cm)

Weight

3.75 lbs (1.7 kg)

Finish

Matte Black Paint

Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: RP-140D Spec Sheet .

Product Manual

Download the Product Manual for RP-140D On-Wall Speaker here: RP Designer On Wall Manual .
