RP-440D SB

Passive Sound Bar

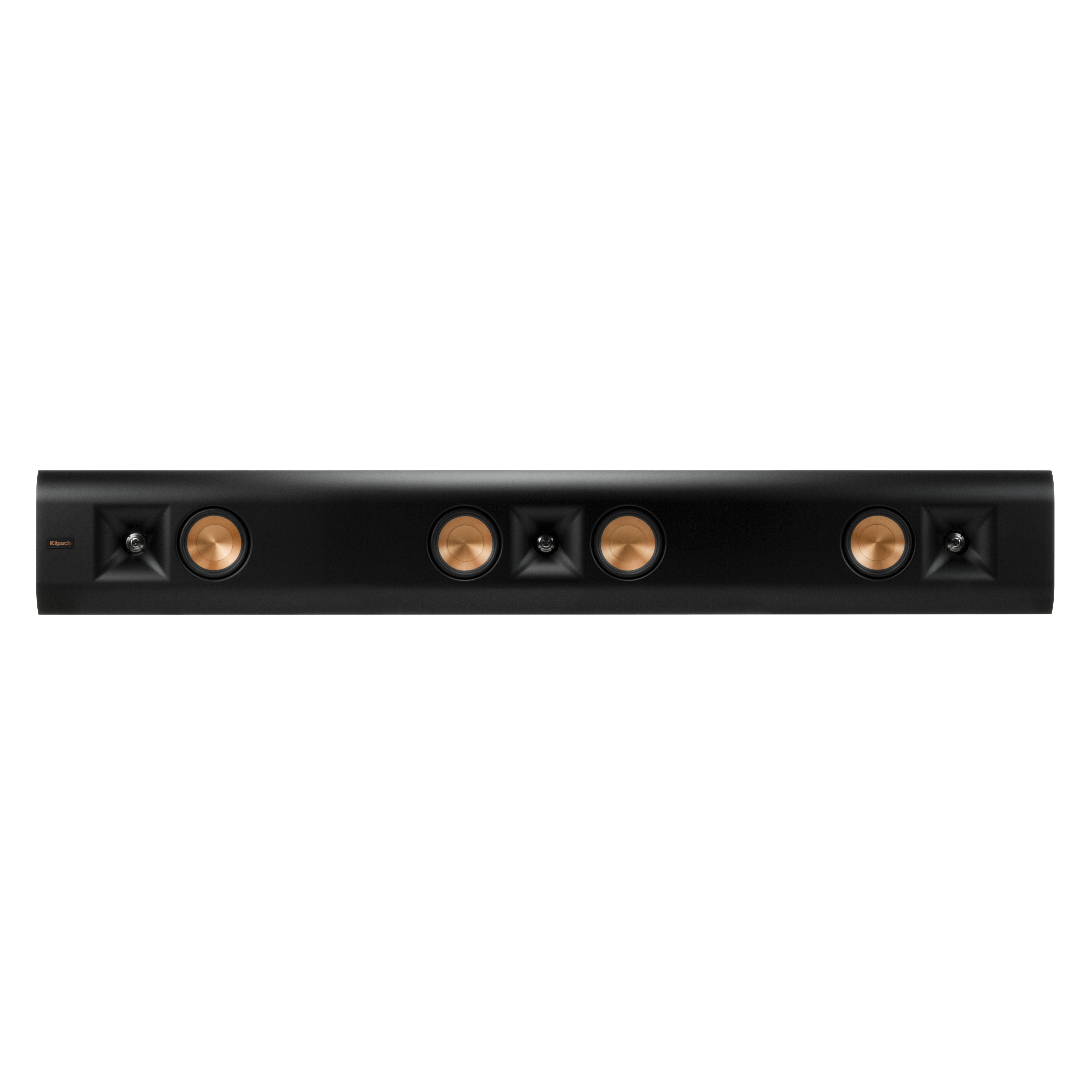

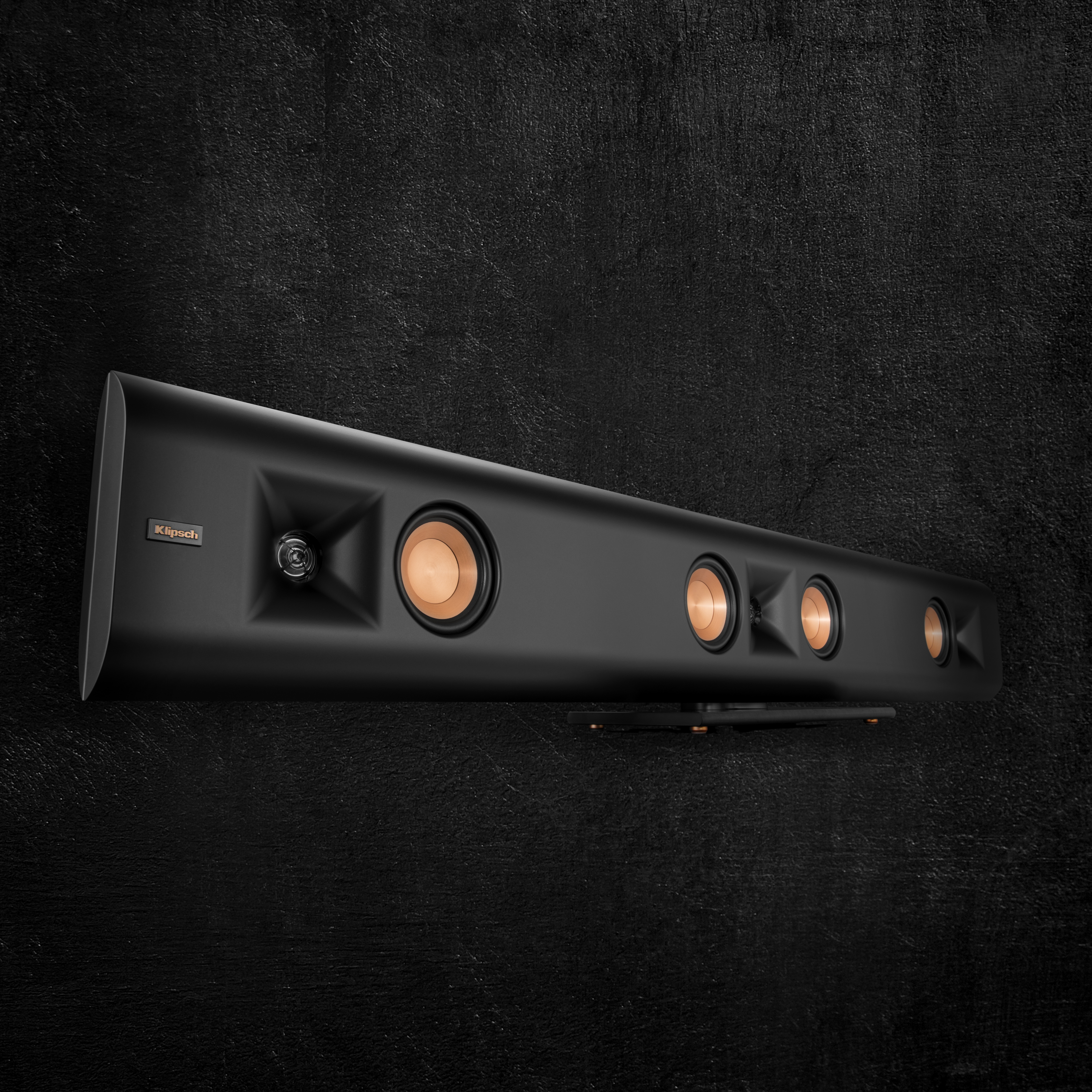

The Reference Premiere Designer On-Wall RP-440D SB is our premium 3-channel passive LCR sound bar. Leveraging the same acoustic technology as our dynamic, detailed, Reference Premiere box speakers in a slim, on-wall solution with an elegant matte finish. Featuring three horn-loaded 1” Titanium Dome Linear Travel Suspension (LTS) tweeters and four 3.5” Cerametallic™ woofers, this premium passive sound bar is the superior choice for minimalist-designed acoustics.

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

90x90 TRACTRIX HORN

The Tractrix^®horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER

The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

SPUN COPPER CERAMETALLIC WOOFERS

Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

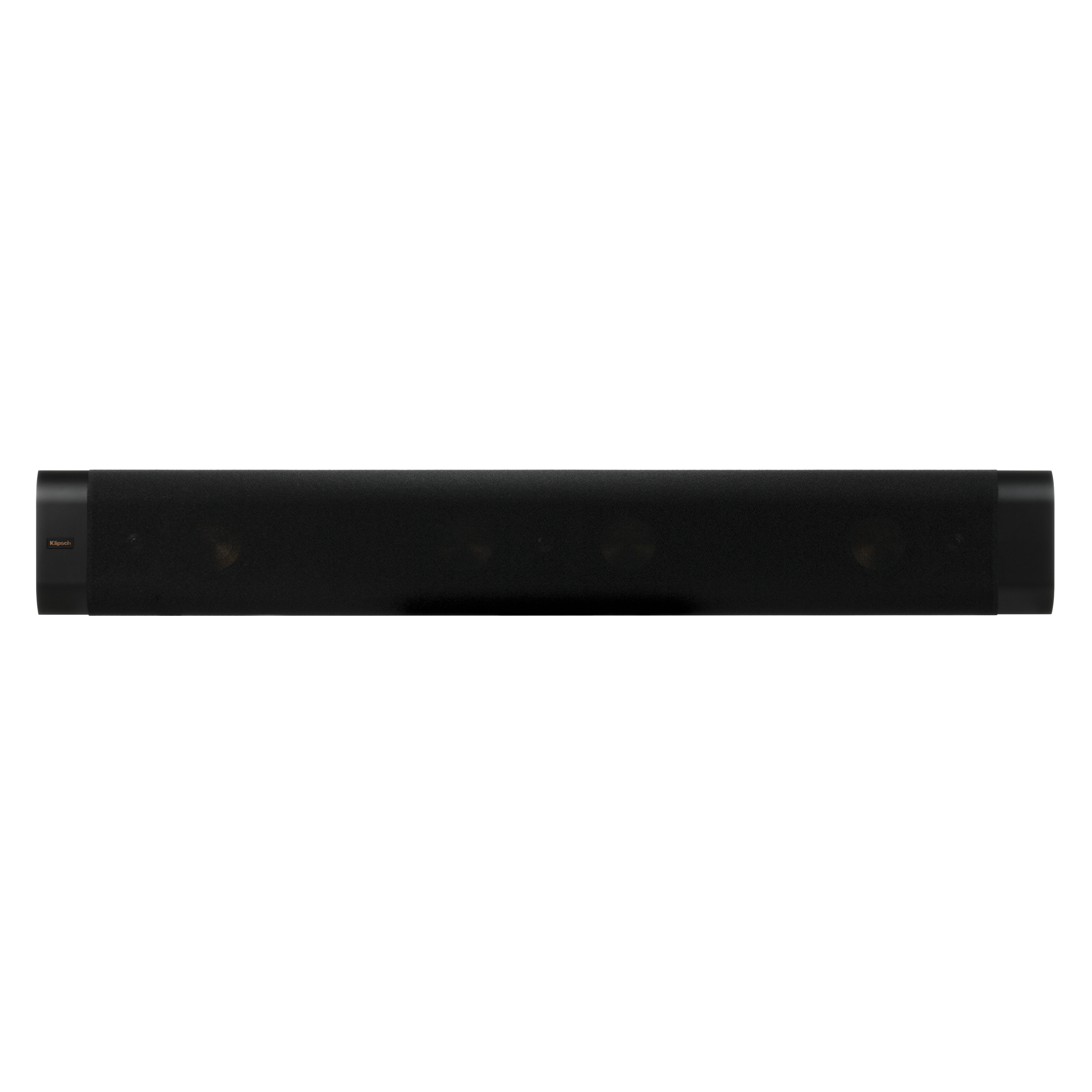

WRAP-AROUND MAGNETIC GRILLE

Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

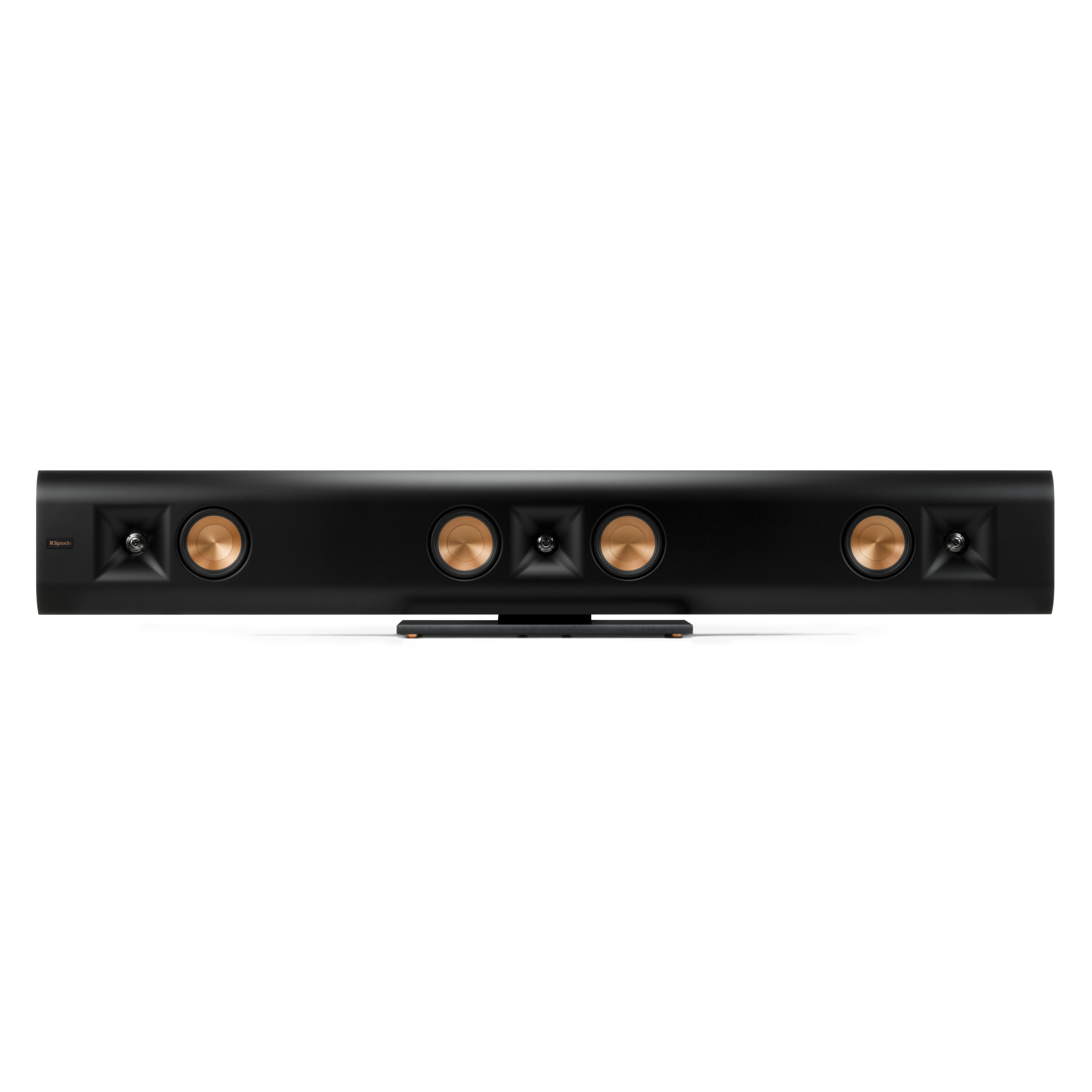

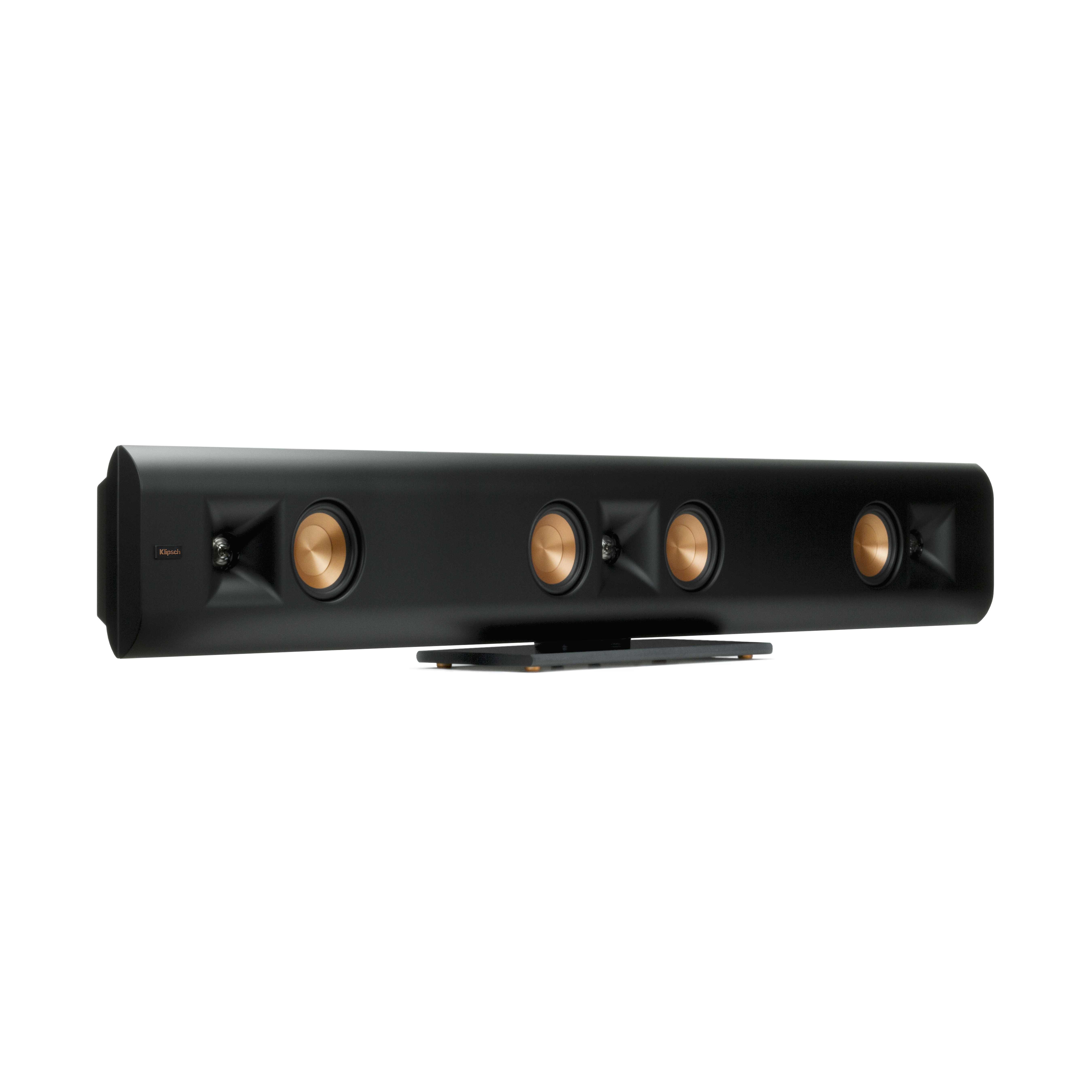

TABLE MOUNT INCLUDED

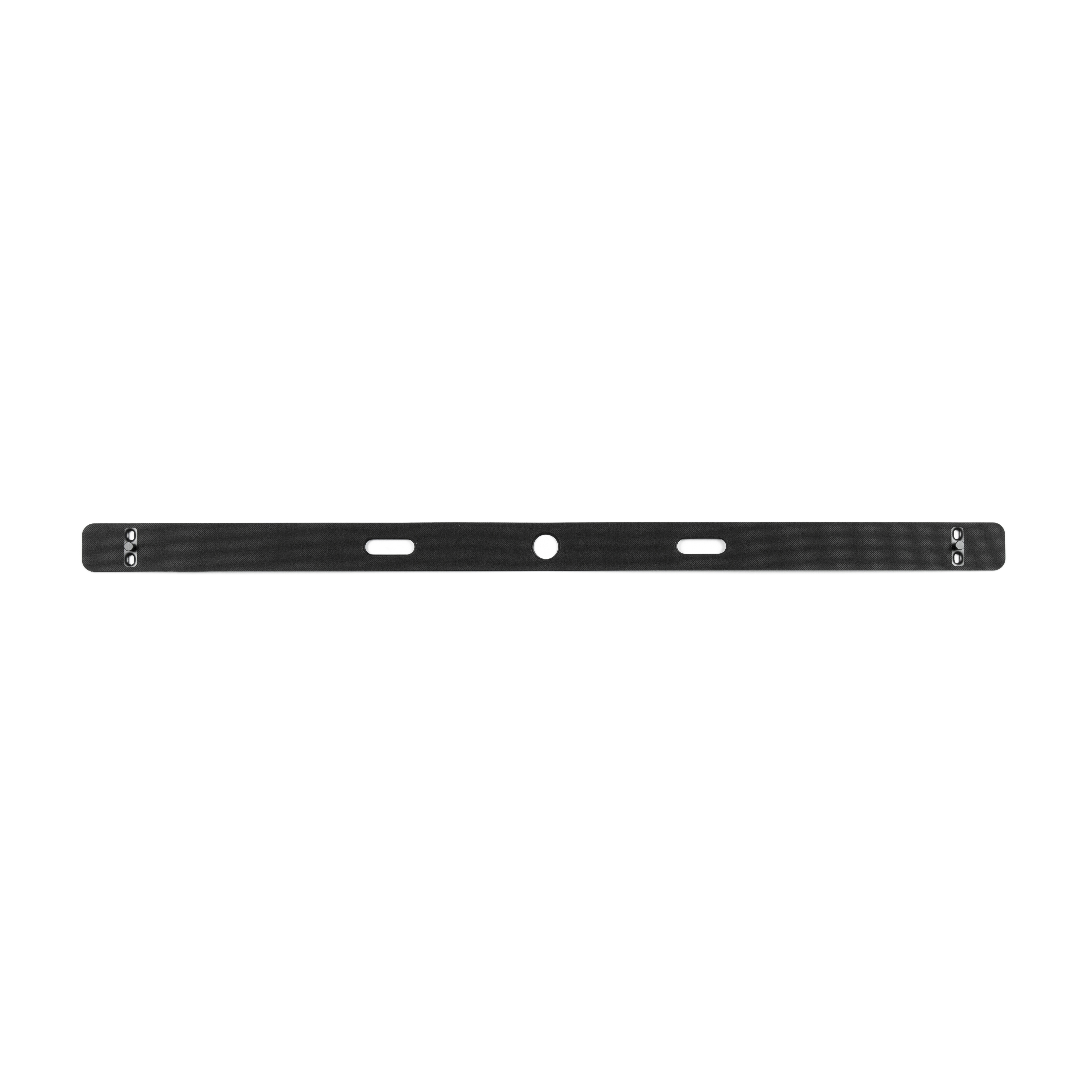

Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.

Features

Key Product Features

Slim On-Wall Solution Matches Today's Ultra-Flat TV's

3-Channel Sound Bar Provides Left/Center/Right Speakers in Single Seamless Cabinet

Reference Premiere Horn Loaded Acoustic Technology

Flexible Placement

Triple 1” Titanium Dome Linear Travel Suspension (LTS) tweeter

Quad 3.5" Cerametallic™ Woofers

Dual 4-Way Keyholes for secure on-wall mounting

Magnetic Wrap-Around Grille

Included glass base for table-top mounting

Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors

Specifications

Key Product Specifications

Frequency Response

65Hz-25kHz +/- 3dB

Sensitivity

92dB @ 2.83V / 1m

Power Handling

50W / 200W Per Channel

Nominal Impedance

8 Ohms Compatible

Crossover Frequency

2200Hz

High Frequency Driver

Thee 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn (One Per Channel)

Low Frequency Driver

Four 3.5” (8.89 cm) Cerametallic Cone Woofers (One each for Left and Right, Two for Center Channel)

Enclosure Material

ABS

Enclosure Type

Bass Reflex

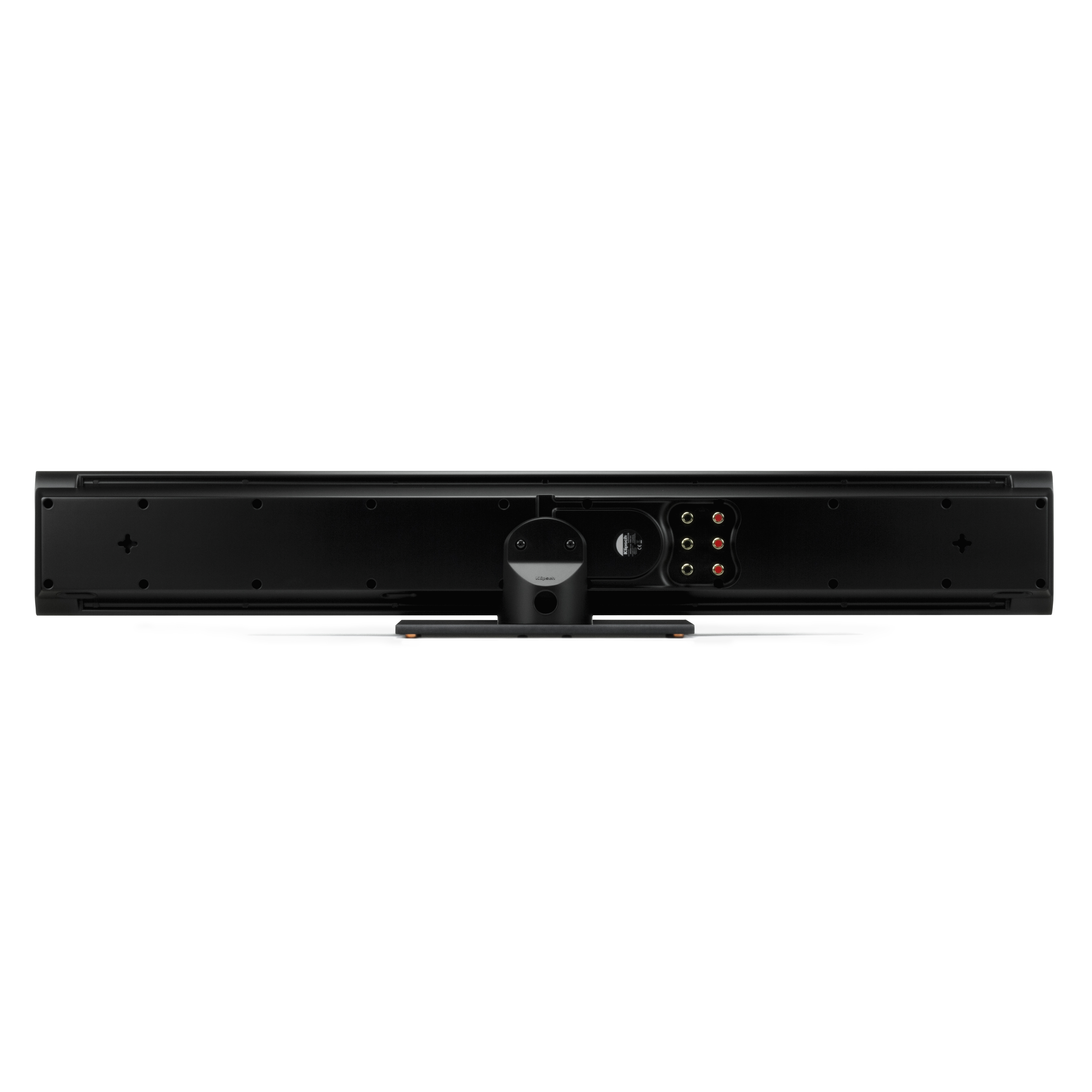

Inputs

Three Sets Single Binding Posts

Height

6” (15.24 cm)

Width

42" (106.68 cm)

Depth

2.4" (6.10 cm)

Weight

12 lbs (5.44 kg)

Finish

Matte Black Paint

Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: RP-440D SB Spec Sheet .

Product Manual

Download the Product Manual for RP-440D SB Passive Sound Bar here: RP Designer On Wall Manual .
