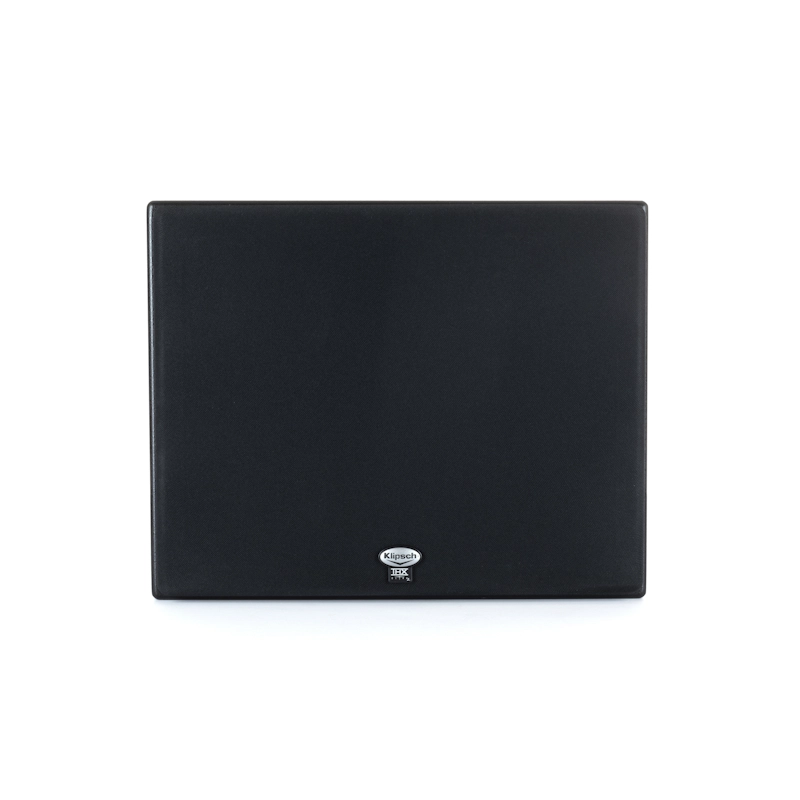

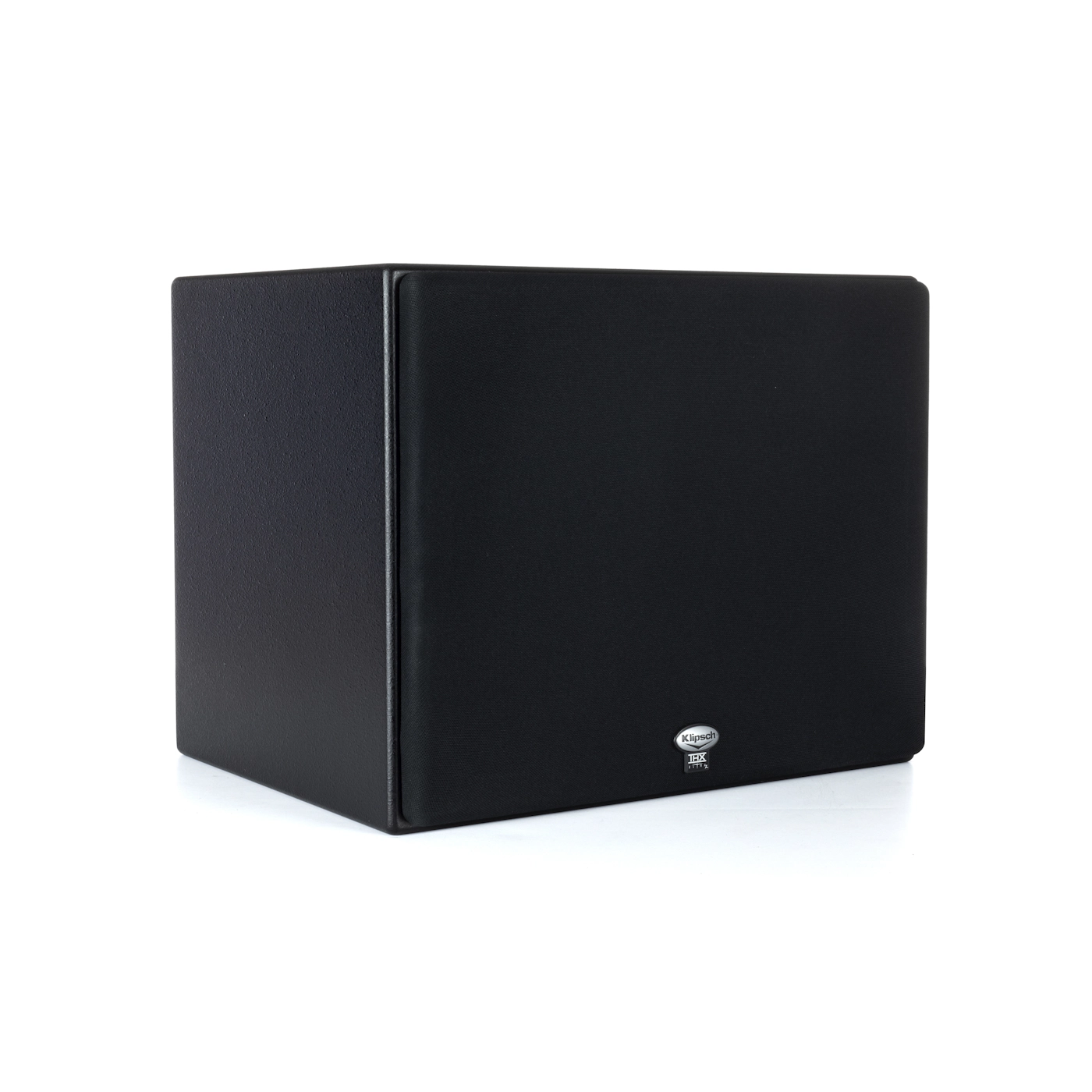

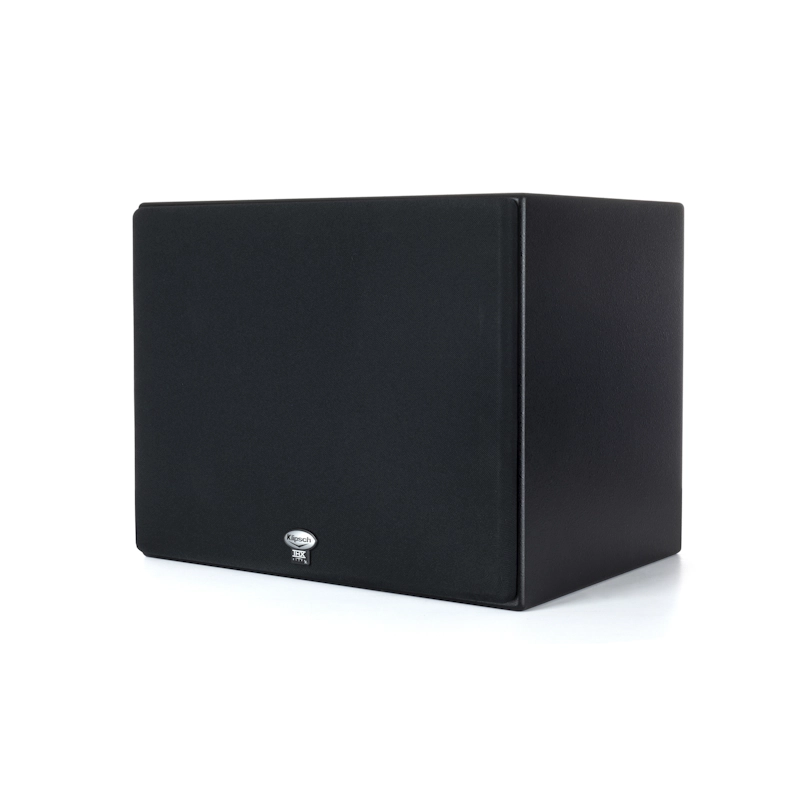

THX-5000-LCR
By using the same research and development used to create its professional cinema systems, Klipsch has developed the THX-5000-LCR loudspeaker to create real theater-style sound in the comforts of home. As part of the THX® Ultra2 family, this LCR reproduces all the passion that the filmmakers originally intended.
Available at IQ Home Entertainment
Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.
Features
Key Product Features
| Sealed enclosure |
| Top-of-the-line internal wiring |
| Dual 5.25-inch Cerametallic™ woofers |
| 1-inch titanium diaphragm compression driver coupled to a 6- by 10-inch Tractrix® Horn |
Specifications
Key Product Specifications
| Frequency Response | 80Hz-20kHz ±3dB |
| Sensitivity | 94dB @ 2.83 volts / 1 meter |
| Nominal Impedance | 8 ohms compatible |
| High Frequency Crossover | 1500Hz |
| Power Handling | 100 watts maximum continuous (400 watts peak) |
| Enclosure Type | Sealed |
| Enclosure Material | Medium density fiberboard construction (MDF) |
| Tweeter | 1" (2.5cm) magnetically shielded, titanium dome compression driver with 9.6oz ceramic magnet structure |
| High Frequency Horn | 10" x 6" rectangular 90° x 60° Tractrix® Horn |
| Woofer | Two 5.25" (13.3cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers |

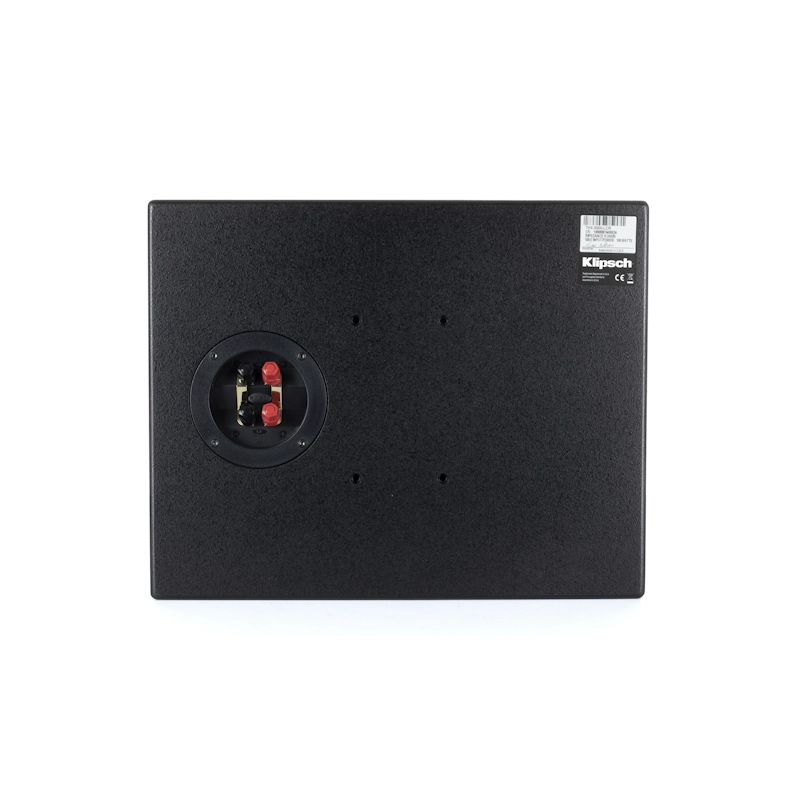

| Inputs | Two sets of binding post speaker terminals (connected via brass strap jumpers) |
| Dimensions | 12.75" (32.4cm) H x 16" (40.6cm) W x 12.5" (31.8cm) D (w/grille) |
| Weight | 32 lbs. (14.5kg) |
| Finish | Galaxy Black cabinet with Black anodized aluminum fascia |
| Mounting | 4-bolt pattern 1/4"-20 thread |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
THX 5000 LCR Spec Sheet v01
.
Product Manual
Download the Product Manual for THX-5000-LCR here:
THX Ultra2 Owners Manual
.
