THX-504-L

In-Wall Speaker

$1,469.99

Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, Klipsch THX Select Certified In-Wall speakers offer the ultimate performance in a hidden solution loudspeaker.

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Features

Key Product Features

1" Titanium Diaphragm Compression Driver mated to a 90° x 90° square Tractrix® Horn

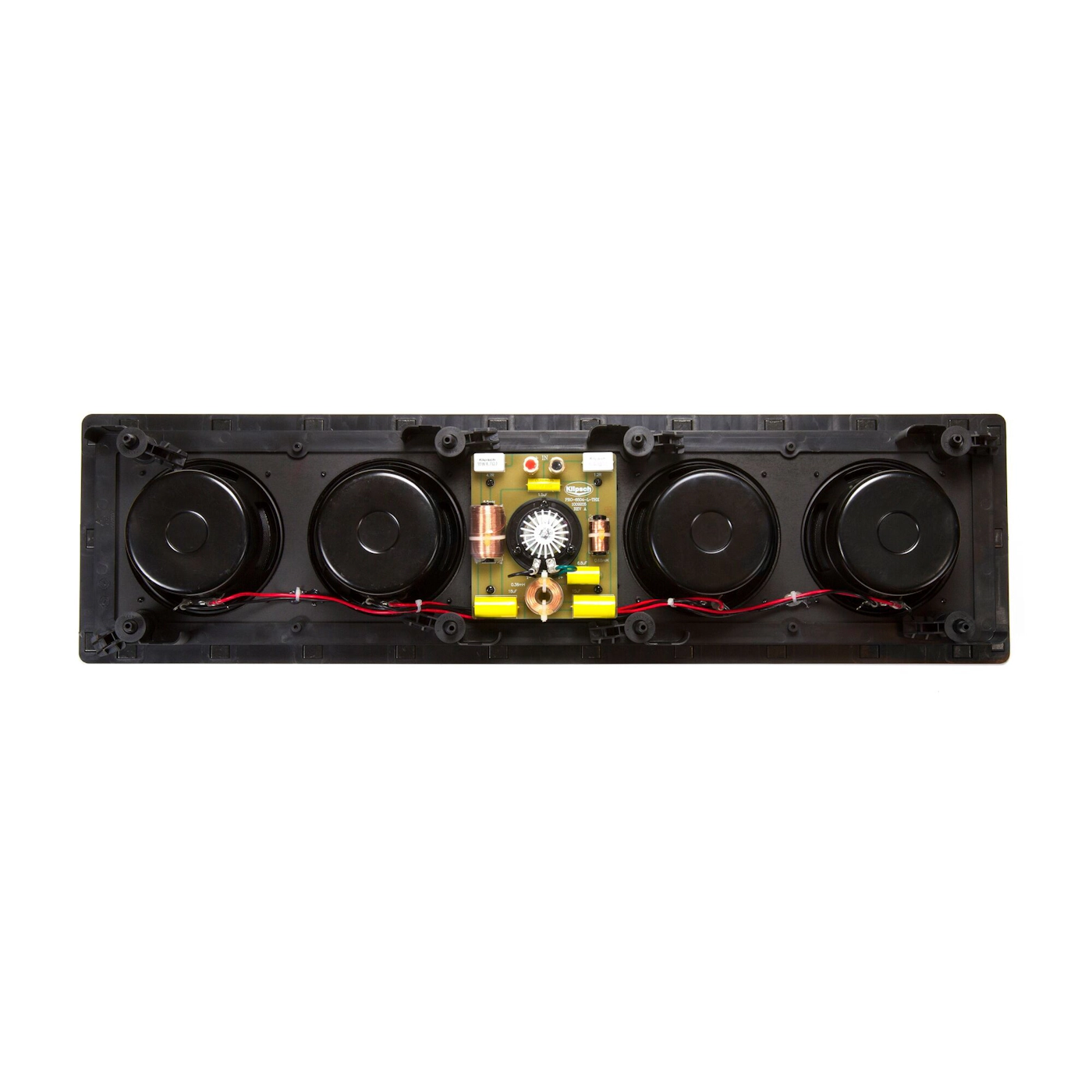

Four 5.25" Fiberglass Cone Woofers

THX Select Certified

Cinema Quality Sound

Maximum Installation Reliability

Unlimited Flexibility

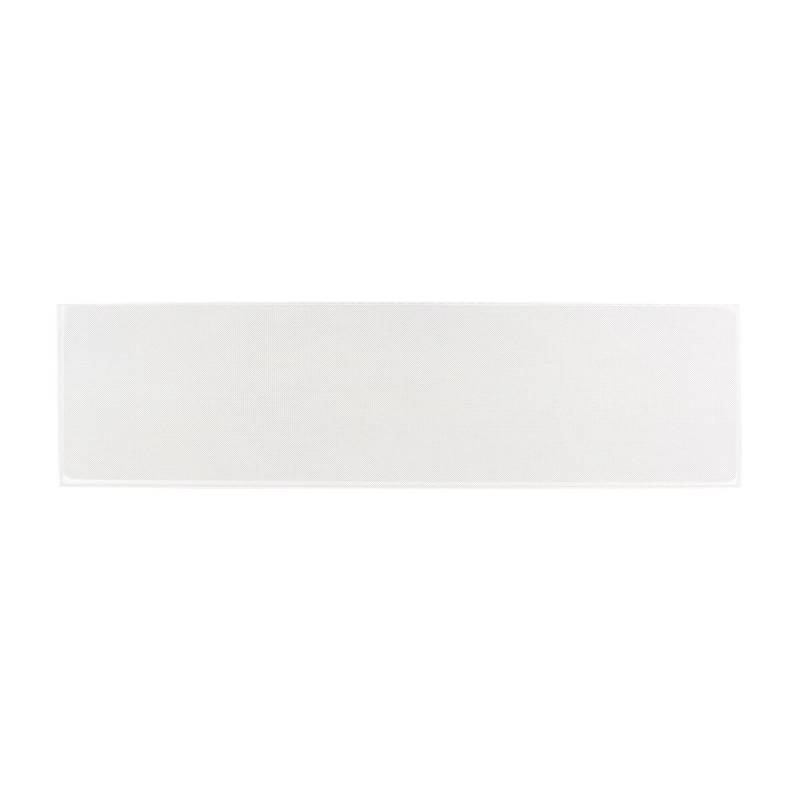

Edge-to-Edge Grilles

Specifications

Key Product Specifications

System Type

2-way In-wall

Frequency Response

46 Hz - 20 kHz +/- 3dB

Power Handling

150W/600W

Recommended Amp Power

150W

Sensitivity

92 dB

Impedance

8 Ohms compatible

High Frequency Driver

1” (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn

High Frequency Crossover

250 Hz & 2100 Hz

Low Frequency Driver

Four 5.25” (13.3cm) high-output, fiberglass cone woofers

Speaker Enclosure

MDF & Aluminum motorboard /ABS frame

Enclosure Type

Infinite baffle, front flush with wall

Hole dimensions (mm/in, HxWxD)

27.25” (69.2cm) H x 6.5” (16.5cm) W

Dimensions

28.88” (733.55mm) H x 8.13” (206.50mm) W

Mounting Depth

3.52” (89.41mm)

Weight

18.3lbs (8.3kg)

Finish

White paintable grill

Installation Kit

IK-504-W

Cutout Dimensions

27.24” (691.90mm) L X 6.5” (165.10mm)

Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: THX-504-L Spec Sheet .
